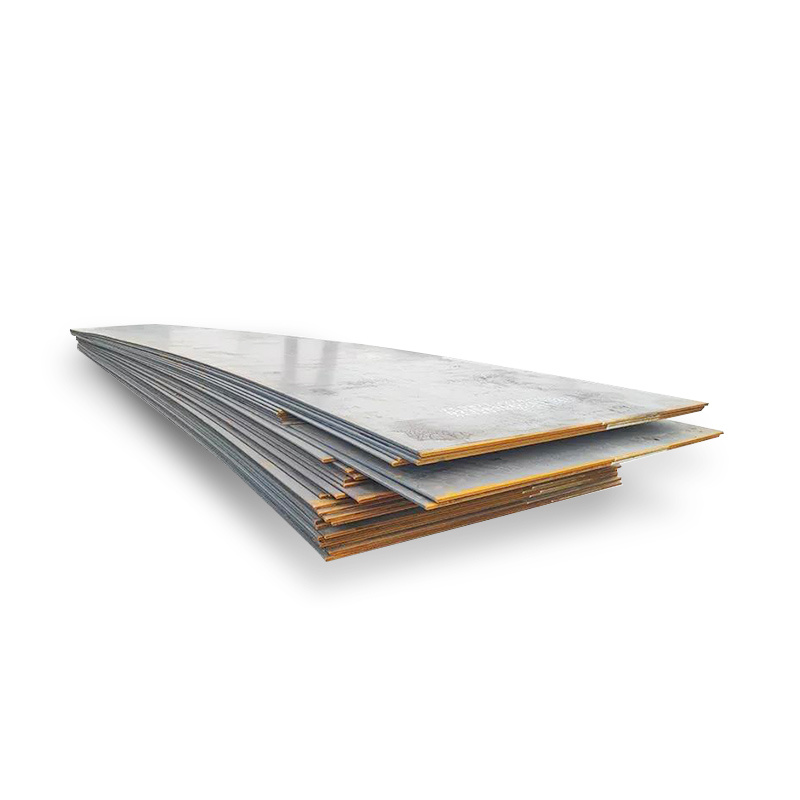

High Tensile A588 Carbon Steel Plate

The ASTM A588 steel is categorized into Class A, Class B, Class C, and Class K. This specification is founded on the standard for high-strength low-alloy structural steel, featuring a lower yield point of up to 50ksi, suitable for applications demanding high strength and corrosion resistance.

Wechat:18365798883
WhatsApp:+86-18365798883
E-Mali:admin@sdxyy.cn

product details

Warehouse

Product testing

Customer feedback

equipment

Transport packaging

A588 Carbon Steel Plate description

The A588 carbon steel plate has undergone specialized treatment to exhibit excellent corrosion resistance, enabling it to withstand corrosion from atmospheric conditions, seawater, salt spray, and other environments, thereby prolonging its service life. Additionally, the A588 carbon steel plate is constructed from high-strength steel, featuring high yield strength and tensile strength to meet the demands of various structural components. The plate also offers superior welding performance, facilitating easy welding and processing, thereby enhancing engineering installation efficiency. A588 carbon steel plates are suitable for a wide range of structural components requiring corrosion resistance and high strength, including bridges, buildings, ships, and vehicles.

Product Parameters

Product Name	A588 Carbon Steel Plate
Type	Hot Rolling, Cold Rolling
Thickness	0.1mm-400mm
Length	1m-12m, or Customized Size
Width	100mm-3000mm
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Scope of Application	ASTM A588 steel is renowned for its exceptional weather resistance. When exposed to external elements, its corrosion resistance is further enhanced, even without the need for painting. ASTM A588 steel offers four times the corrosion resistance of carbon steel. Its applications are extensive, extending beyond the typical use in welded bridges and buildings. This specification is widely utilized in railway passenger cars, transmission towers, telephone towers, trucks, bridges, gusset plates, and housing shells. Additionally, ASTM A588 steel maintains a favorable strength-to-weight ratio, meeting the high strength requirements of carbon steel with reduced weight.
Certificate	ISO, SGS, BV, etc.
Production Technology	Rolling, Annealing, Quenching, Tempered or Standard
Edge Processing	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A588	C	Mn	P	S	Ni	Si	Cr
GradeA	≤ 0.19	0.80~1.25	≤ 0.04	≤ 0.05	≤ 0.40	0.30-0.65	0.40-0.65
GradeB	≤ 0.20	0.75~1.35	≤ 0.04	≤ 0.05	≤ 0.50	0.15-0.50	0.40-0.70
GradeC	≤ 0.15	0.80~1.35	≤ 0.04	≤ 0.05	0.25-0.50	0.15-0.40	0.30-0.50
GradeK	≤ 0.17	0.50~1.20	≤ 0.04	≤ 0.05	≤ 0.40	0.25-0.50	0.40-0.70

Mechanical Properties

A588	Tensile Strength	Yield Strength	Elongation 200mm%	Elongation 50in%
Thickness≤100mm	485	345	18	21
Thickness>100-125mm	460	315	-	21
Thickness>125-200mm	435	290	-	21
