First Class 201 Stainless Steel Pipe

201 stainless steel typically encompasses 201 stainless steel and acid-resistant steel. The term “201 stainless steel” denotes steel that resists corrosion from weak media such as atmosphere, steam, and water, while “acid-resistant steel” refers to steel that withstands corrosion from chemical corrosive media such as acids.


    Picture Name

    201 Stainless Steel Pipe Description

    201 stainless steel is primarily composed of iron with chromium content ranging between 16 and 18%, along with up to 0.15% carbon. It also contains small quantities of manganese, nickel, silicon, nitrogen, and copper. This grade offers higher formability compared to the 300 series grades and can be hardened through cold working processes, although it does not undergo heat treatment like the 304 or 316 grades. 201 stainless steel is characterized by its high manganese and low nickel content, resulting in relatively poor corrosion resistance. It finds widespread use in various applications such as tabletops, countertops, kitchenware, outdoor decoration engineering, urban decoration industry, and low-grade household products. Additionally, it is employed in medical instruments and automotive parts that require flexibility while maintaining strength under pressure.

    Product Parameters

    Product Name 201 Stainless Steel Pipe
    Type Steel Pipe
    Outer diameter Round Tube 4mm-200mm
    Square Tube 10*10mm-100*100mm
    Rectangular Tube 10*20mm-50*100mm
    Wall Thickness 0.6mm-6.0mm
    Length 1-6 meters, Length can be customized
    Standard ASTM, AISI, JIS, GB, DIN, EN, etc.

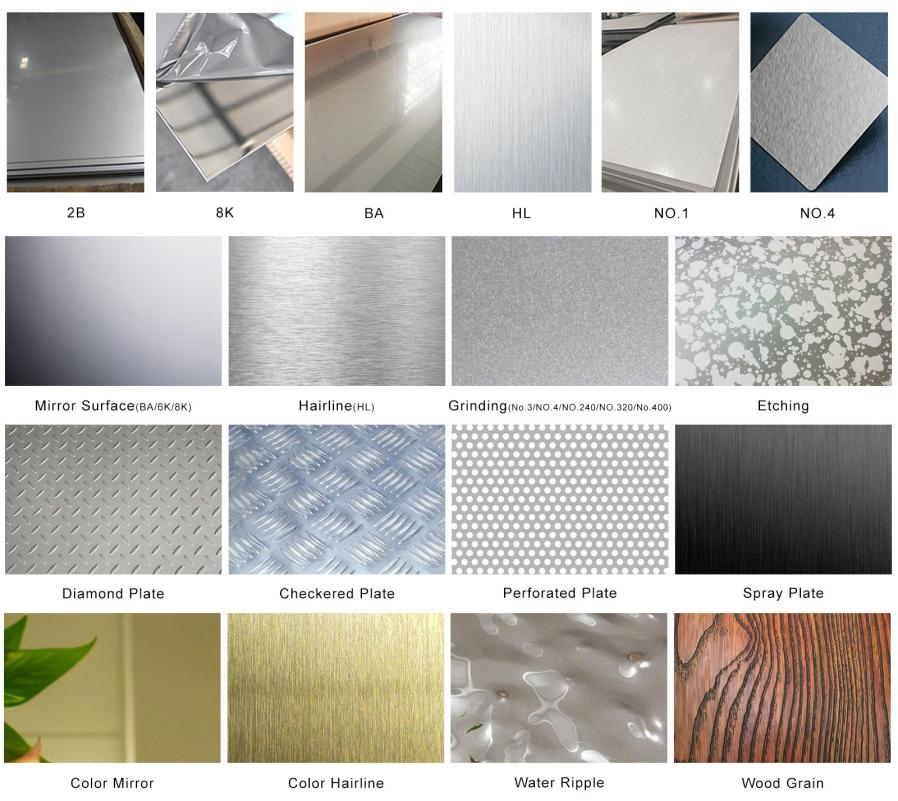

    Surface Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
    Scope of Application Stainless steel pipes are commonly employed in a wide array of industries, including food processing, textile operations, breweries, water treatment plants, oil and gas processing, fertilizers and pesticides production, chemical applications, construction, pharmaceuticals, and auto parts manufacturing, among others.
    Certificate ISO, SGS, BV, etc.
    Production Technology Hot Rolling, Cold Rolling
    Edge Processing Edging, Trimming

    Chemical Composition

    C Si Mn Cr Ni S P
    ≤ 0.15 ≤ 0.75 5.50~7.50 16.00~18.00 3.50~5.50 ≤ 0.03 ≤ 0.06

    Mechanical Properties

    Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
    ≥ 520 ≥ 275 ≥55-60 ≤183HB;≤ 100 HRB

    Physical Performance

    Density(g/cm³) Modulus of Elasticity(Gpa) Coefficient of Thermal Expansion(10-6/°C) Coefficient of Thermal Conductivity(W/m*K) Resistivity(μohm.in)
    7.8 197 15.7 16.2 27
    product-description1qrz

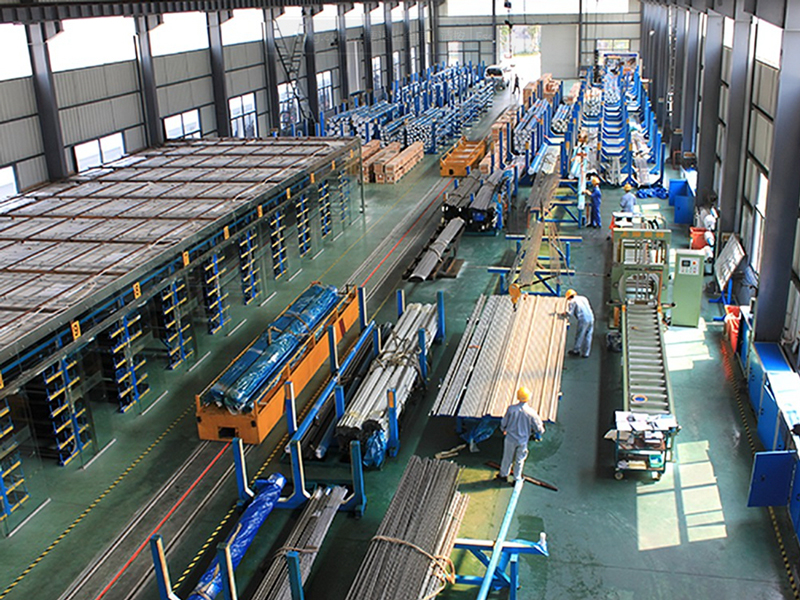

    • warehouse12fy

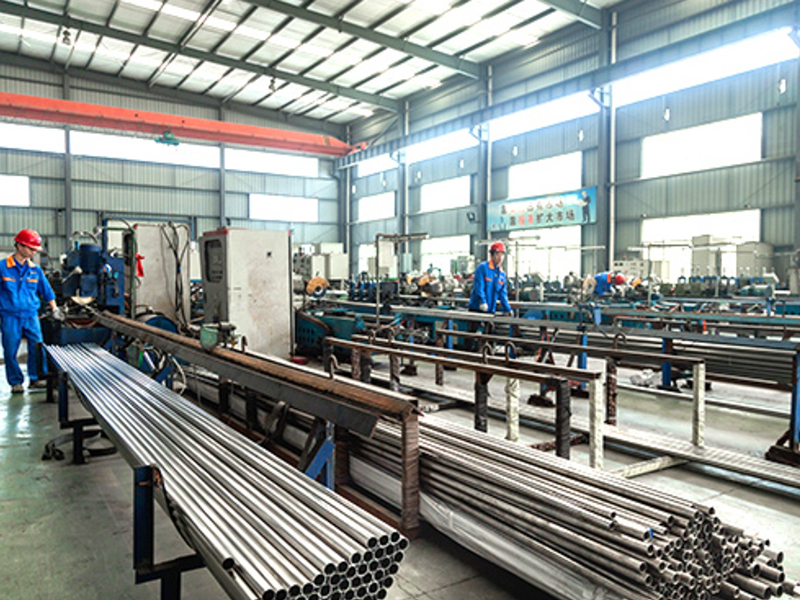

    • warehouse2ur4

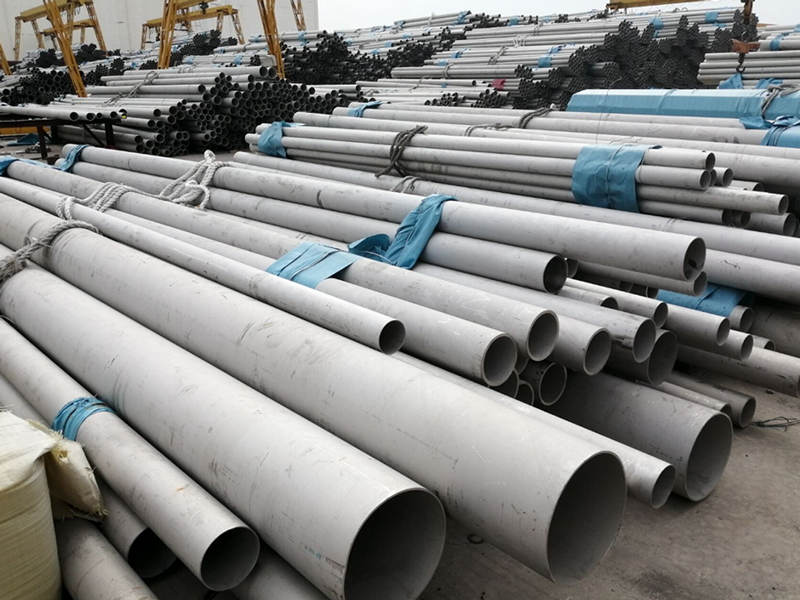

    • warehouse39su

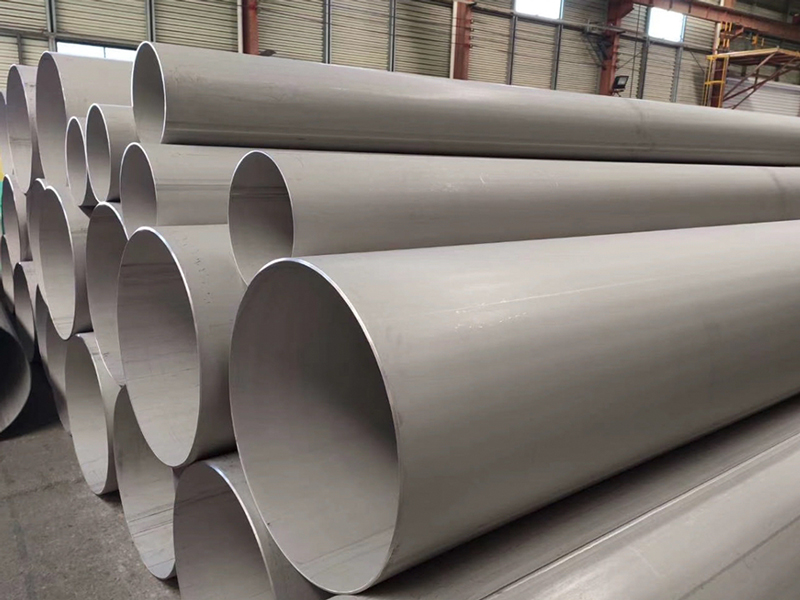

    • warehouse4j2n

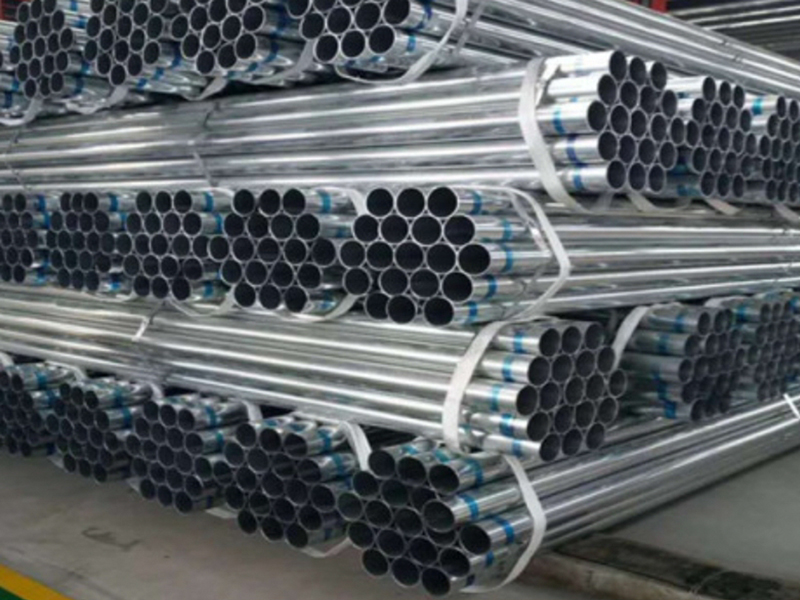

    • warehouse5ul3

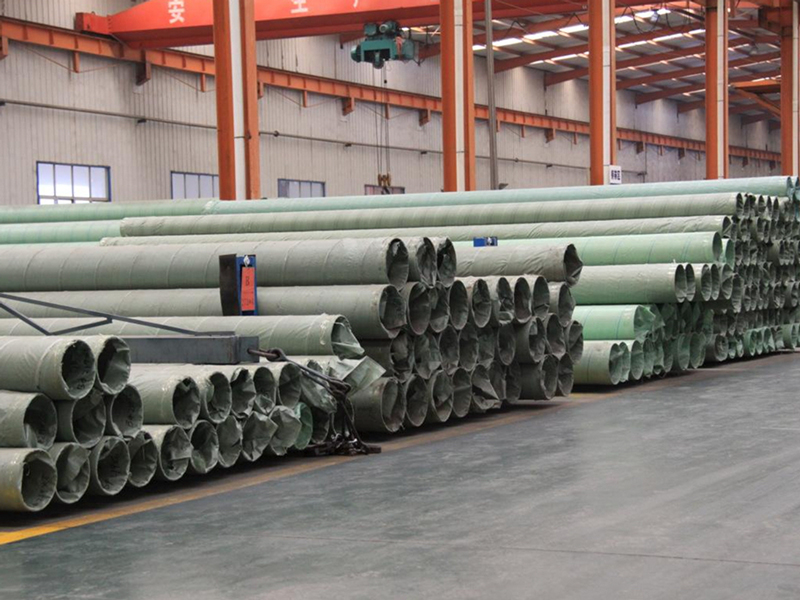

    • warehouse6el0

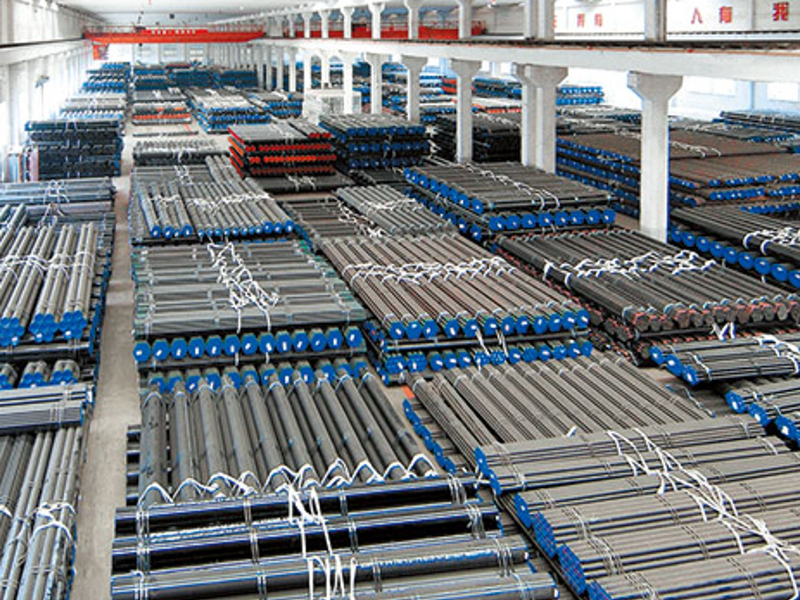

    • warehouse7ol0

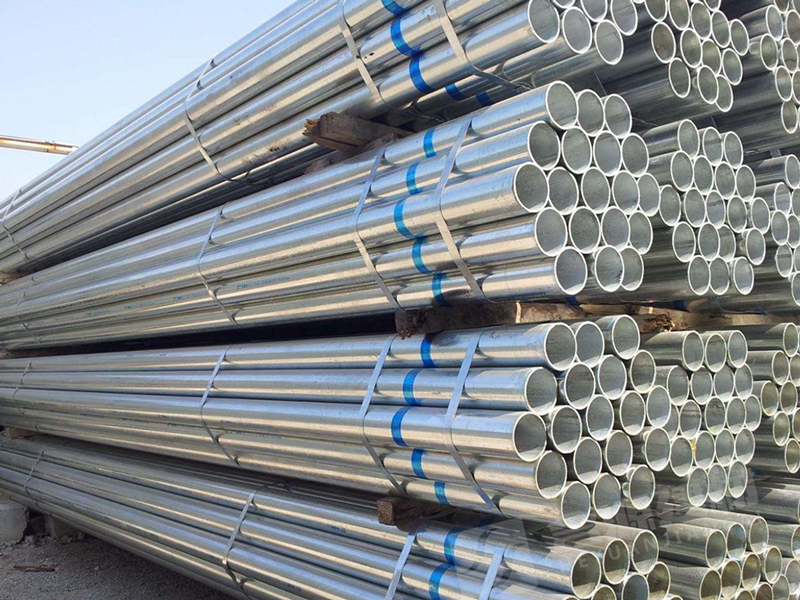

    • warehouse86fx
    • (Length-measuring-instrument)bda
    • Product-testing1r8l
    • Product-testing47lf
    • Product-testing5byv
    • Product-testing6k1q
    • Length-measuring-instrumentpqe
    • Straightness-measuring-instrument0kr
    • Product-testing3uam

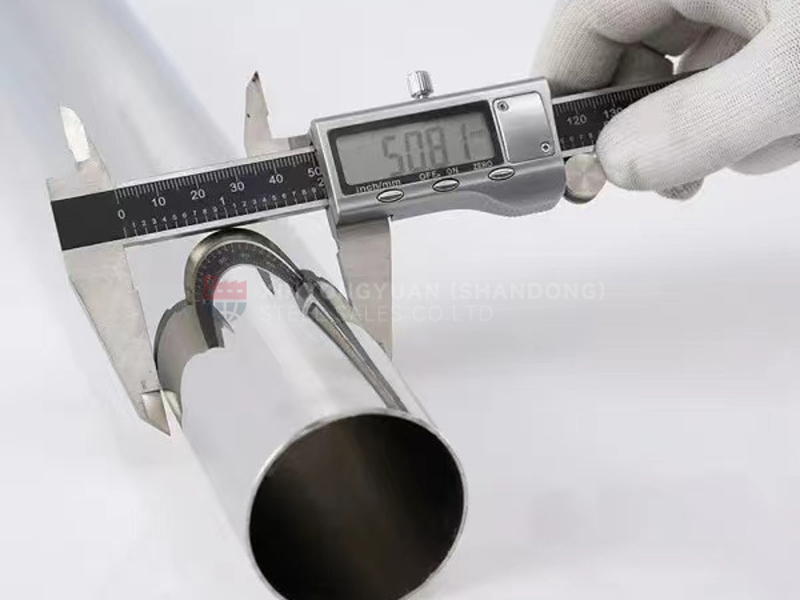

    • Product-testing5qqi

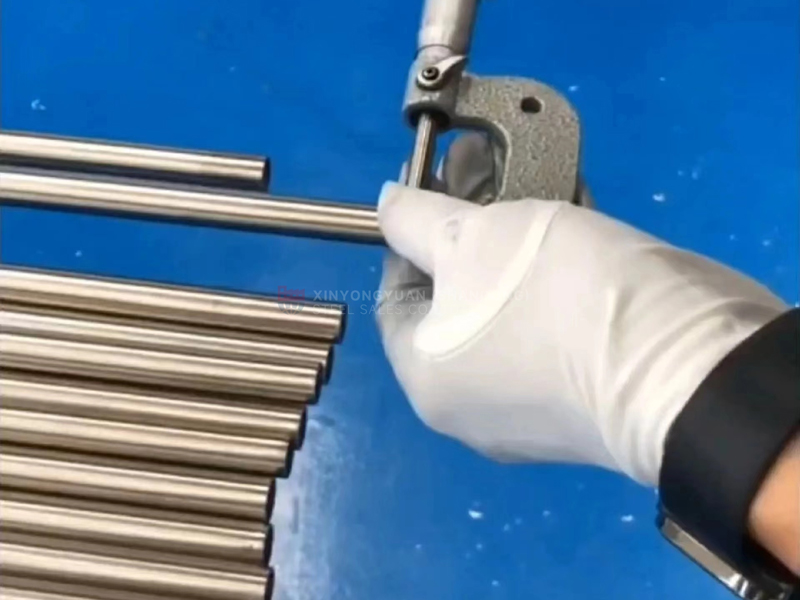

    • Product-testing6iy6
