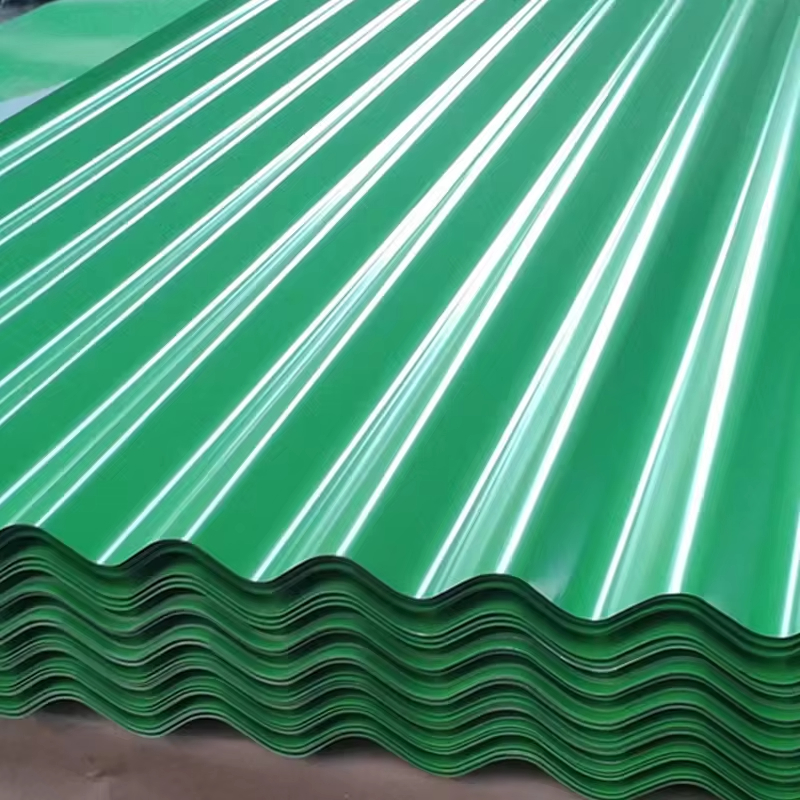

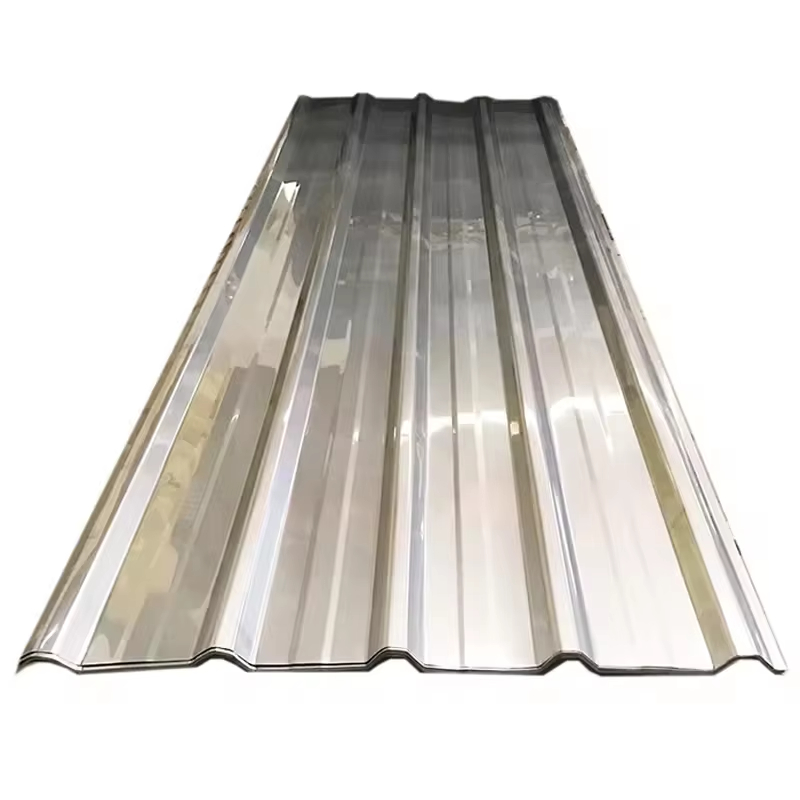

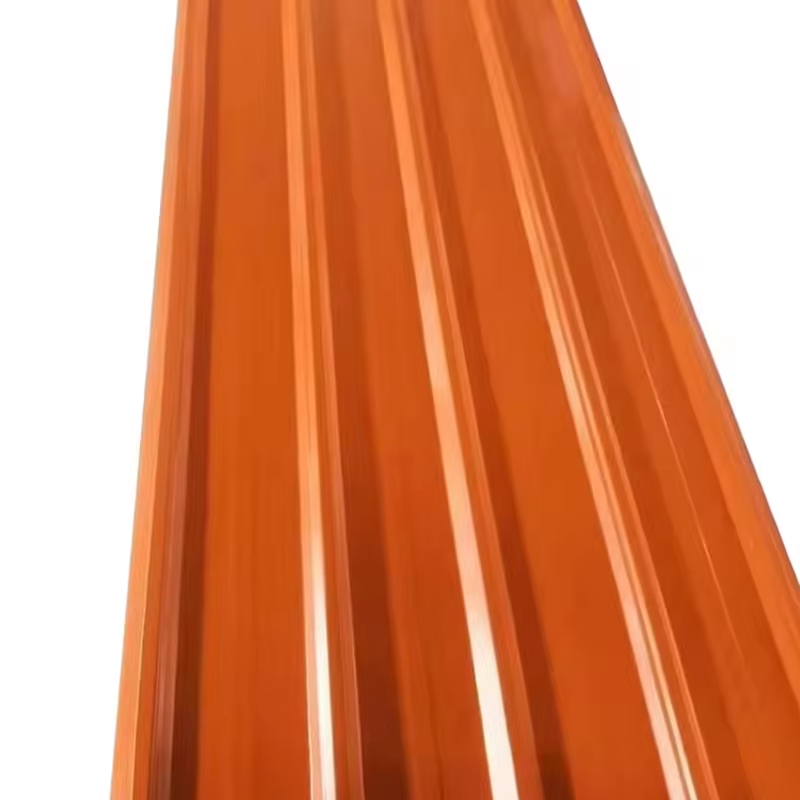

Excellent Galvalume Steel Corrugated Roof Sheet

Galvalume steel corrugated roof sheets are made from galvanized steel, coated with zinc for corrosion protection. Available in hot-dip and electro-galvanized options, their corrugated design enhances strength and durability against harsh weather conditions.

Wechat:13256351334
WhatsApp:+8613256351334
E-Mali:admin@sdxyy.cn

product details

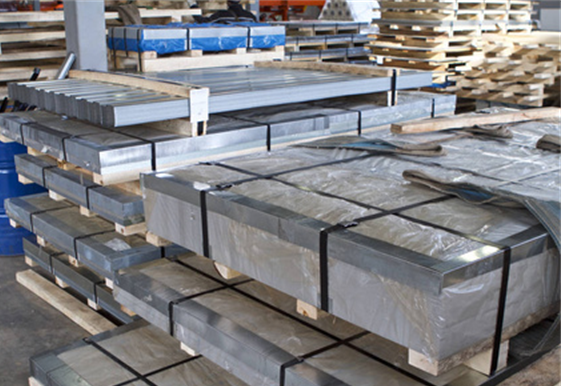

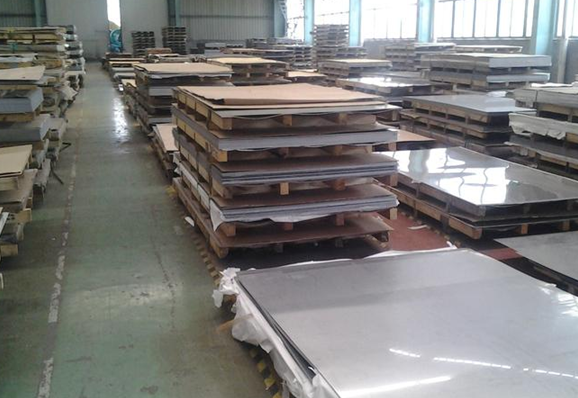

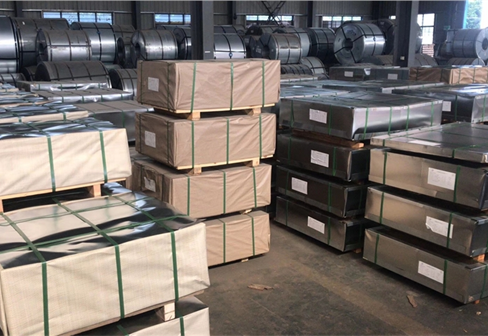

Warehouse

Product testing

Customer feedback

equipment

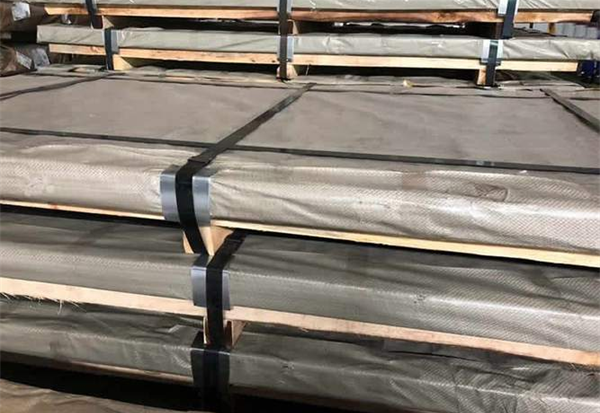

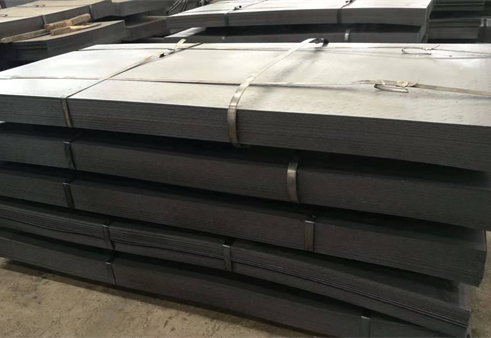

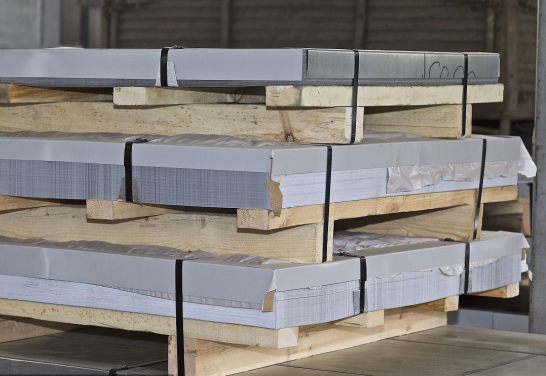

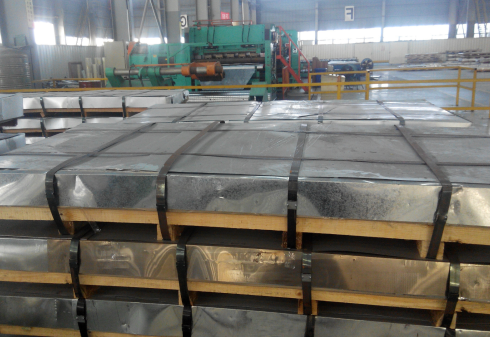

Transport packaging

Galvalume Steel Corrugated Roof Sheet Description

Galvalume steel corrugated roof sheets are available in various designs, including wavy, trapezoidal, and ribbed patterns. These sheets can be utilized as single-layer boards, as overlays on existing roofs, or as part of steel sandwich panels. Compared to traditional roofing materials, Galvalume sheets are more cost-effective, lightweight, and easy to install, making them a practical choice for many applications.

In addition to their durability and recyclability, Galvalume sheets require minimal maintenance, further enhancing their economic appeal. They feature a bright, smooth surface that not only looks aesthetically pleasing but also allows for easy painting in various colors, enabling customization to meet design preferences.

Superior Corrosion Resistance

The aluminum layer in Galvalume steel provides exceptional corrosion resistance. As the zinc wears away, the aluminum forms a dense oxide layer that protects the underlying material from further corrosion. Consequently, the corrosion resistance of Galvalume (GL) plates is three times greater than that of traditional galvanized (GI) plates, with a service life that can be two to six times longer under similar conditions.

High Thermal Reflectivity

Galvalume sheets have a reflection coefficient that is double that of galvanized metal roof panels, helping to reduce indoor temperatures during the summer and lowering air conditioning costs. This feature makes them particularly suitable for hot climates.

High Temperature Resistance

GL roofing sheets exhibit excellent heat resistance, capable of withstanding temperatures above 300 degrees Celsius, making them suitable for prolonged use in high-temperature environments.

Smooth Surface, Uniform Appearance

The aluminized zinc roof panels boast a smooth, silvery-white finish with a uniform appearance, making them visually appealing for both commercial and residential applications.

Good Formability and Adhesion

Galvalume sheets offer excellent adhesion for paint, making them easy to customize. They also possess outstanding formability, allowing for straightforward processes such as punching and cutting.

Scope of Application

Commercial buildings: hospitals, schools, shops, government buildings, etc.

Residential projects: private houses, apartments, temporary houses, garages, etc.

Industrial application: warehouse, factory, etc

Agricultural use: barn, storage room, greenhouse, etc

Product Parameters

Product Name	Galvalume Steel Sheet
Thickness	0.12mm-6.00mm
Width	600mm-1500mm
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating	30-185g/m²
Content of Al-Zn Coating	Al: 55%, Zn: 43.5%, Si: 1.5%

Chemical Composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Close Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Galvanized Surface Selection

Zero Spangle

Minimized Spangle

Normal Spangle

Large Spangle

Type of Coating	Recommended Coating Weight
Aluminum-zinc Alloy	30/40/50/60/75/90/100/150
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm

Project	Classification	Symbol
Type of Coating	Aluminum-zinc Alloy	AZ
Surface Finish	Conventional Sequins	R
	Minimize Sequins	M
	Skin Through	S
Surface Treatment	Chromate Passivation	c
	Non-chromate Passivation	C5
	Chromate Passivationoiling	CO
	Chromium-free Passivationoiling	CO5
	Anti-fingerprint	N
	Chromate-free/Anti-fingerprint	N5
	No chromate high weather resistance fingerprint	NW
	Oil filling	0
	No treatment	U

Material Comparison

Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570
